Incat Crowther Releases Details of Next ShadowCAT Concept

Incat Crowther Releases Details of Next ShadowCAT Concept

GCaptain
Total Views: 1654
November 23, 2020

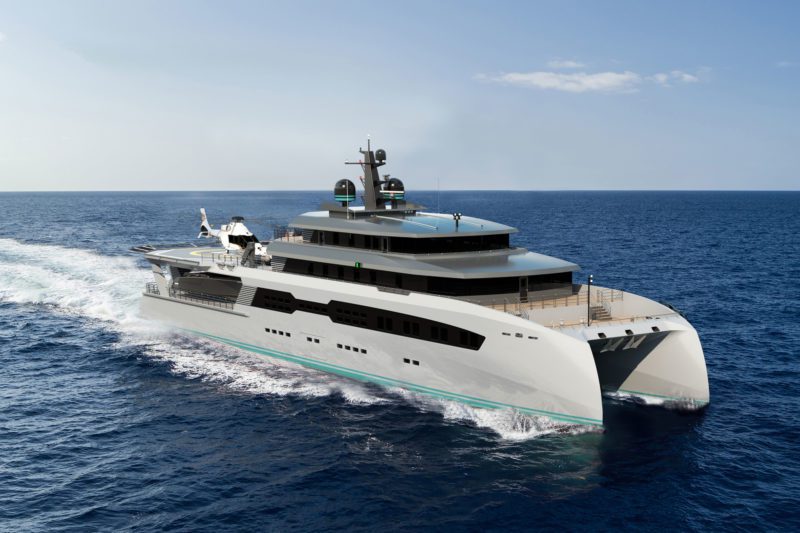

Press Release – The team behind the World Superyacht Award-winning support vessel Hodor has unveiled a new COVID-19  inspired shadow vessel concept named Haven

Designed by Incat Crowther, the ShadowCAT Haven is described a “protective layer” to the owner’s mothership.  By acting as a buffer between the main yacht and outside world, Haven allows owners and charterers to  maintain COVID-secure social bubbles on board.

The yacht will act as a COVID-19 testing facility and quarantine space before allowing guests and crew to  proceed onto the mothership.

Key features include a hospital and laboratory, allowing the monitoring of all crew on board Haven and the  mothership. This will ensure the owner’s crew only come into contact with tested Haven crew. All new crew  and guests must pass through Haven for testing before boarding the mothership.

As a result, the mothership will have no direct contact with the shore. All stores and transfers will be handled  entirely by Haven.

The multihull design of the yacht allows Haven to operate in two zones contained in the separate hulls. Shore  zone will deal with any potential risk of infection, such as new guests, crew or stores. The yacht side meanwhile  will remain tested and clean.

The shadow vessel will be equipped with all the latest COVID 19 testing equipment, as well as strategically  located thermal cameras to pick up any signs of infection.

Air conditioning and circulation systems will be combined with “nanotechnological surfaces” that destroy  viruses and bacteria.

Elsewhere, Haven will boast all the expected facilities of a capable support vessel, including storage for Jet Skis,  tenders, a submarine, diving centre and decompression chamber. A helicopter landing page and fueling area  are also found on board, as well as the option to add a dedicated hangar.

Other innovations include hydroponic gardens, research labs and offices for security and aviation staff.

SPECIFICATIONS – 68m SHADOW CAT

PRINCIPAL DIMENSIONS

Length Overall 223’ 10” / 68.2m Length Waterline 215’ 7” / 65.7m Beam Overall 50’ 11” / 15.5m Draft (prop) 10’ 8” / 3.25m Depth 19’ 9” / 6.0m Construction Marine grade aluminium CAPACITIES

Fuel Oil 52 834 gallons / 200 000 litres Fresh Water 2642 gallons / 10 000 litres Crew and Staff 52 Gross Tonnage 2005 GT Tenders 1 x 42’ 8” / 13m 2 x 39’ 5” / 12m  2 x 23’ / 7m  6 x Jet Skis

PROPULSION AND PERFORMANCE

Speed (Cruise) 12.5 knots Speed (Max) 21.5 knots Range @ 12.5 knots 5 500 nm Main Engines 2 x MTU 16V4000 M73L SCR Power 2 x 2 832kW @ 2 050 rpm Propulsion 2 x Propellers Generators 2 x Caterpillar REGULATORY

Class / Survey Lloyd’s Register +100A1 SSC Support Catamaran  HSC G6 +LMC Helicopter Landing Area, UMS

For more information contact [email protected]
