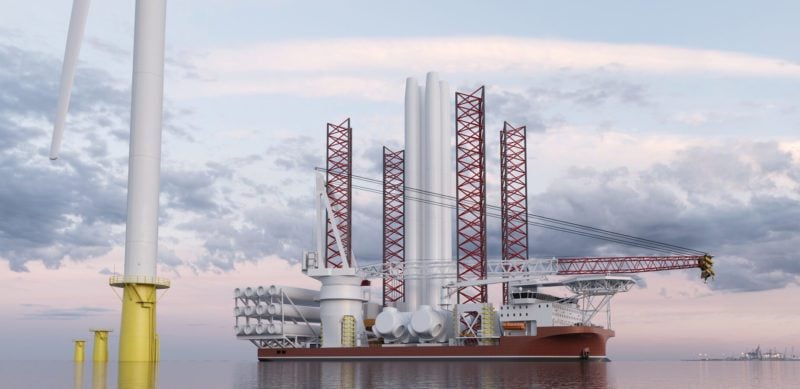

Image credit: KNUD E. HANSEN

Knud E. Hansen Unveils New Wind Turbine Installation Vessel Design

Mike Schuler
Total Views: 2478
June 21, 2021

Danish naval architecture firm Knud E. Hansen has unveiled a new Wind Turbine Installation Vessel design designed to transport and install turbines at large-scale offshore wind farms.

The design, known as the Atlas A-class, can carry up to four new-generation 14MW wind turbines. The vessel is specifically designed for transporting and assembling wind turbines on top of pre-installed foundations. Since foundations do not require jacking, they can be installed using a heavy-lift vessel. This allows the Atlas A-class to be entirely optimized for the jacking operation with a 1600-2500 tons crane and minimal system weight for the jacking equipment.

image credit: KNUD E. HANSEN

KNUD E. HANSEN described the benefits of the A-class in a news release:

In keeping with the philosophy of the Atlas series, the A-class design can be highly customized by selecting cranes, thrusters, generators and jacking systems according to the specific requirements of the client, as well as availability from the manufacturers. This offers important competitive advantages over less flexible, off-the-shelf designs.

The powering of the vessel is provided by eight generators connected to a DC grid and a battery pack, allowing the engines to run at variable speed for fuel efficiency while also utilizing load leveling and peak shaving. The batteries not only provide instant power, avoiding unnecessary spinning reserve power from the generators, but also make it possible to recover approximately 60% of the energy used for jacking, when the jacking units are reversed on the way down. Furthermore, the high-speed electrical rack-and-pinion jacking system is designed for 5,000 load cycles, ensuring that the legs and components will withstand wear throughout the life of the vessel, avoiding costly and resource-heavy replacements along the way.

The main deck of the accommodation block includes an operations center consisting of offices and meeting rooms as well as a hospital, day room, TV room, change room, and workshop. Above this is a large galley with spacious mess as well as ample provision rooms.

The three decks above include a total of 114 cabins for contractors, crew and officers. The top deck consists of a bridge with center and wing consoles and a large helicopter deck. Below the main deck is a gymnasium, cinema, TV room, games room, and sauna as well as a laundry room and store rooms.

Image credit: KNUD E. HANSEN

Atlas A-Class MAIN PARTICULARS

Length Overall (excluding helideck) 155,40 m
Breadth moulded 57,40 m
Depth to Main Deck 12,50 m
Draught, moulded @ 14,000 t deadweight 6,50 m
Speed @ 6.20 m draught incl. 10% s.m. 12 kts
