North Dragon’s Hull Launched at CIMC Raffles

Rob Almeida
Total Views: 2
January 13, 2015

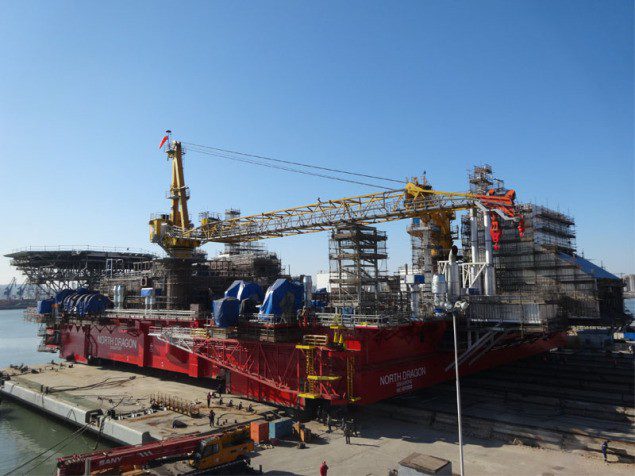

North Dragon’s hull, image: CIMC Raffles

The above image is not a barge, or a leg-less jack-up rig, but rather the hull of the North Dragon semi-submersible drilling rig under construction at CIMC Raffles.  The columns and pontoons have been built separately as the below image shows (shot last October) and were launched in November of last year.

The rig was designed in a joint effort between Global Maritime and CIMC Raffles and will be DNV-GL classed and Singaporean-flagged.  CIMC says it was designed in accordance with the North Sea conditions, taking into account the Arctic and Barents Sea conditions with the requirement to withstand a 100-year storm in the North Sea, to meet the Norwegian petroleum authorities, Norwegian Maritime Board and the Norwegian offshore industry standard ( NORSOK ) requirements.

Delivery is planned for 2016.

north dragon rig
North Dragon’s pontoons and columns, image shot in Oct 2014, via North Sea Rigs,

Rig particulars:

  • Design: GM4D
  • Station keeping: DP3, 6 thrusters
  • Length: 106.75 meters
  • Breadth: 73.7 meters
  • Depth: 42 meters
  • Maximum operating depth: of 500 meters
  • Maximum drilling depth: 8000 meters
  • Top drive: 680T-120RPM @ 124 N-m
  • Mud pumps: 3 x 2200 HP 9? x 14? single acting triplex pumps
  • Crane: 2 x 80 ton
