Mississippi River Barge and Freight Train Collide: NTSB Report

The National Transportation Safety Board (NTSB) said Thursday that a Mississippi River towing vessel’s pilot and its captain pushed its tow up against a riverbank too close to a railroad track, leading to a collision with a freight train and derailment near Galland, Iowa.

The November 13, 2021 incident involved the towing vessel Baxter Southern, pushing four empty barges, and a BNSF coal train transiting the track along the shoreline of the Upper Mississippi River. The train struck a barge that was overhanging the railroad track.

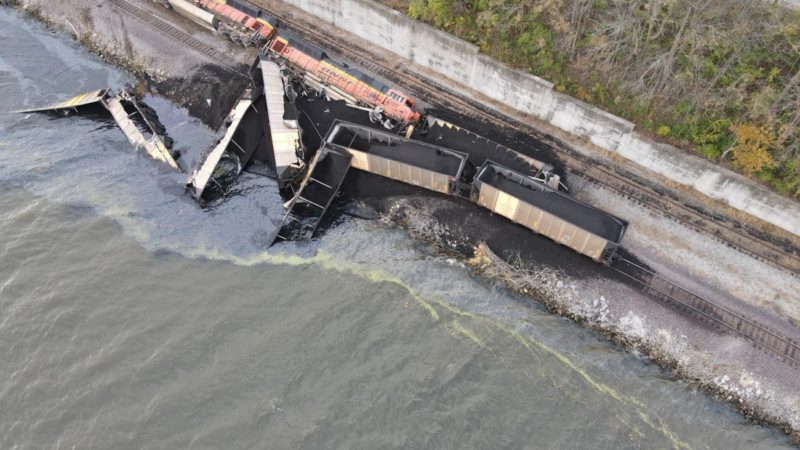

Two locomotives and ten hopper cars loaded with coal derailed. Six of the derailed hopper cars entered the river. Two train personnel sustained minor injuries. The collision resulted in $1.9 million in damages to the locomotive and freight cars. The barge sustained minor scrapes.

During a transit downriver, strong wind gusts made the situation unsafe for the Baxter Southern to continue the voyage as planned. Using the vessel’s electronic chart system (ECS), the captain and pilot identified a location on the riverbank that they believed was a fleeting area safe to push up against. But neither the pilot nor the captain clicked an exclamation point symbol on the electric chart, which would have showed that the area presented a “Railroad Collision and Trackbed Erosion Risk.”

Baxter Southern Rose Point in nighttime display showing the area marked by the magenta dashed line and exclamation point (left, annotated by NTSB) and information contained in the corresponding caution note (right). Source: Southern Towing Company via NTSB

The pilot pushed the tow onto the riverbank, and three crewmembers headed forward on the tow to verify the forward-most barge was clear of the track. While the barge did not cross over either rail, it extended about a foot over the railroad ties.

When the pilot of the Baxter Southern saw the light of the approaching train, he attempted to move the tug and tow away from the riverbank. The train’s engineer activated the train’s emergency brake when the train was about 300 feet from the barge. The efforts were too late to avoid the collision.

The NTSB determined the probable cause of the collision was the tow’s pilot and captain not correctly identifying a caution area on the electronic chart before deciding, due to the high wind’s effect on the tow’s empty barges, to push the tow up against the riverbank alongside a railroad track.

“ECS provide a wealth of navigation information to mariners. Electronic charting display and information systems (ECDIS) enables users to obtain more information about a feature by querying through a cursor pick,” the report said. “There are many features—including warnings and other navigation information—that can be obtained through a cursor pick that are not specifically noted in the default chart display. Mariners should ensure they understand all symbols and applicable advisories identified in their ECS, and owners and operators should ensure that their crews are proficient in the use of ECS.”

Read the report: Marine Investigation Report 22/22

For more information about chart symbols, the NTSB says mariners should refer to U.S. Chart No. 1: Symbols, Abbreviations and Terms used on Paper and Electronic Navigational Charts or the U.S. Army Corps of Engineers’ Inland Electronic Navigational Charts.
